A sheet metal bracket is simple only when its interfaces are simple. Bend geometry, hole location, load path, installed hardware, mating parts, finish and the state in which dimensions are inspected must be coordinated. MakeNexa reviews the complete bracket requirement across its supplier network; material, tooling, tolerance, price and lead time are confirmed for the submitted RFQ.
Route decision
Begin with the installed job of the bracket: what it locates, supports, protects or connects. Identify mating faces, fastener axes, slots used for adjustment, cable or component clearance and surfaces that transfer load. Submit the bracket and relevant mating geometry rather than a flat pattern alone. Functional relationships after bending and finishing should control the route.
Material grade and thickness, bend direction, inside radius, reliefs, flange access, hole-to-bend spacing and hardware sequence all affect manufacturability. A prototype can validate fit and assembly, while later repeat supply may justify dedicated tooling, fixtures or documented inspection. The quote-specific plan should state which assumptions are supplier-owned and which released dimensions or flat patterns are buyer-controlled.

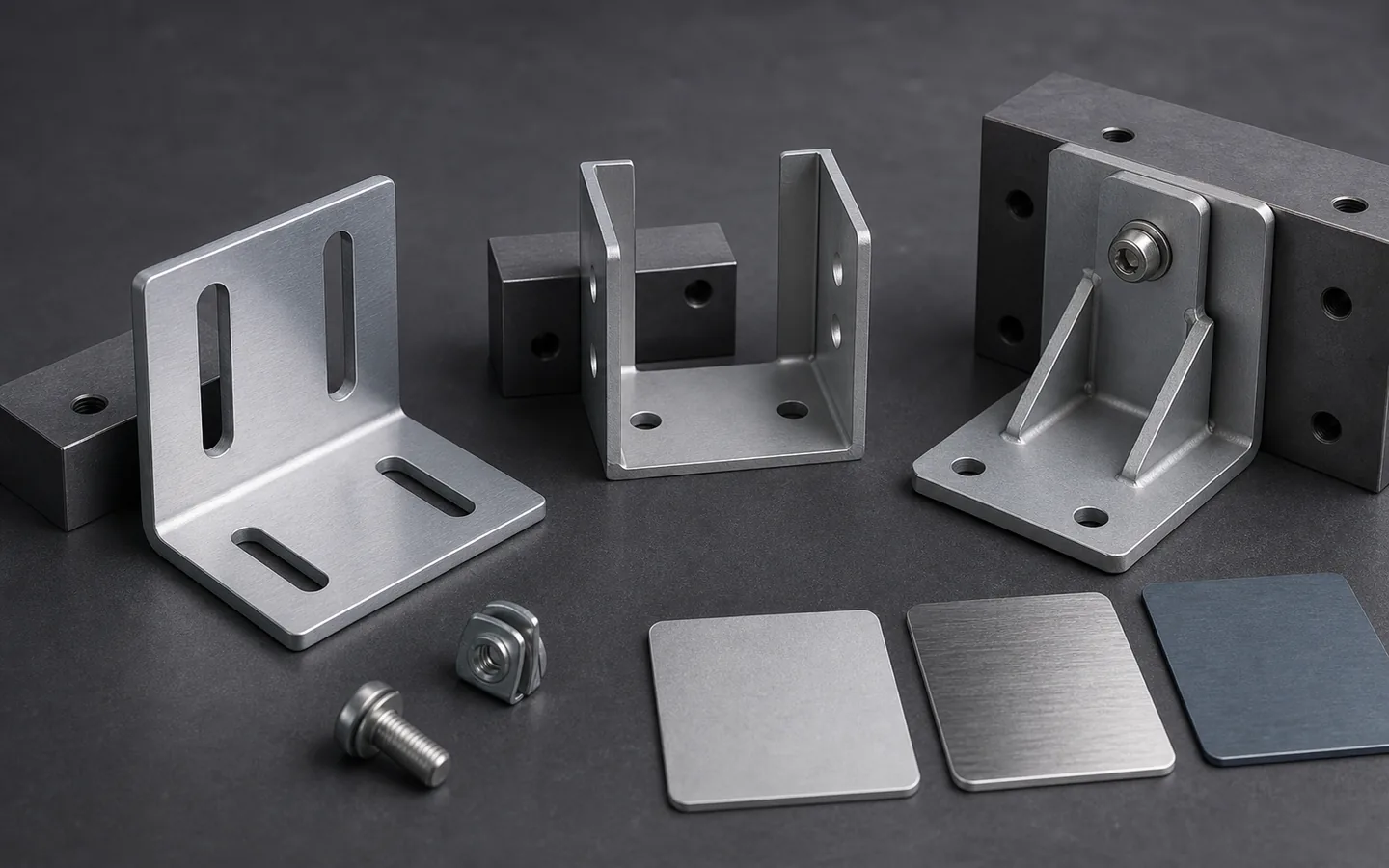

Best-fit parts and programs
A bracket earns its simplicity by using bends and material thickness efficiently without hiding assembly risk.
Define mounting faces, datum relationships, fastener clearance, adjustment range and mating geometry. Separate locating features from clearance features so inspection focuses on the interfaces that position the assembly.
Flanges, returns, ribs, hems or gussets may improve stiffness, edge safety or stability. Load direction, access, joining and finish should be reviewed before adding features that complicate forming.
Captive nuts, studs, standoffs and threaded inserts can reduce later assembly work when parent material, access, installation sequence, finish and seating checks are defined in the same package.
Mark viewing zones, grain direction, weld visibility, fastener appearance, edge treatment, coating and protected surfaces. A cosmetic requirement needs a viewing condition or approved reference, not adjectives alone.
Feasibility checks
Bracket failures often come from treating the flat shape, bend and mating assembly as separate drawings.
Hole and slot position near a bend can interact with stretch, reliefs, tooling and measurement. Mark functional fastener axes and allow the reviewed route to propose a pre- or post-bend feature strategy.
Material, thickness, grain direction and tool availability influence the achieved bend. Define functional envelope and permitted radius interpretation instead of adding unsupported precision to every bend.
Coating can affect holes, threads, grounding points, mating faces and hardware installation. State masked or bare zones and whether dimensions apply before or after finish.
Thin brackets may flex under a fixture or assembly. Define free-state, restrained-state or installed acceptance and provide mating information where the assembly establishes final geometry.
Route options
The best route follows geometry, load, quantity, finish and evidence—not the generic bracket label.
Use cut-and-bend construction when consistent thickness and accessible bends create the required interfaces. Coordinate flat development, forming, hardware and finish in one controlled route.
Welding, riveting or hardware may suit enclosed, reinforced or multi-plane geometry. Define distortion, visible joints, access, cleaning and final inspection before selecting the joint.
Machining or a sheet-and-machined hybrid may better serve thick sections, tight interfaces, bearing seats or complex access. Compare total function and assembly rather than piece price alone.
Decision comparison
Typical published practice for formed sheet-metal brackets. Achievable tolerances depend on material, thickness, bend count and tooling, and the project requirement is confirmed on the reviewed quote rather than from this table.
| Decision layer | Typical published value | Routing consequence |
|---|---|---|
| Hole position on one face | Commonly ±0.13 mm from a cut edge on a laser-cut flat feature | Tight where the geometry stays flat |
| Hole position across a bend | Commonly ±0.5 mm and looser, because bend angle and flat-pattern development both contribute | Mounting patterns should live on one face wherever possible |
| Bend angle tolerance | Commonly ±1°, tightening to ±0.5° with added setup and inspection | On a 100 mm flange, 1° is about 1.7 mm at the free end |
| Datum selection | The mounting face that locates the bracket in the assembly should be the drawing datum | A datum chosen for drawing convenience makes a workable part fail inspection |
| Minimum inside bend radius | About 1 times material thickness in 5052-H32; 2 to 3 times in 6061-T6 | Material choice decides feasibility before tooling does |
| Hole to bend distance | At least 2.5 times material thickness plus the bend radius | Closer and the hole pulls oval during forming |
| Slotted holes | A slot 1 mm longer than the fastener clearance absorbs bend-angle variation that a round hole cannot | Often the cheapest fix for an accumulating tolerance chain |
| Material choice | 5052-H32 at 193 MPa / 28 ksi yield forms cleanly; 6061-T6 at 276 MPa is stronger but cracks at tight radii | Whether the bracket is strength-limited or form-limited |
| Stiffness | A formed flange or a swaged rib adds far more stiffness than a thickness increase, because stiffness follows section depth | Whether the bracket needs thicker material or better geometry |
| Hardware | Self-clinching nuts and studs need a minimum sheet thickness and edge distance stated by the hardware manufacturer | Whether the chosen gauge supports the hardware |
| Finishing effect | Powder adds 50 to 100 µm per surface, closing clearance holes and threads unless masked | Which holes and threads are masked or reamed after finishing |
| Prototype to repeat | Prototype brackets are often hand-formed; repeat batches use tooling and hold tighter, with different economics | Whether the prototype's tolerances transfer |
Quote inputs
Show how the bracket fits the assembly so the supplier route can protect the right relationships.
Complete packages move faster: revision-matched CAD, critical dimensions, quantity and material notes are enough to open engineering review across the network.
Get a QuoteSubmit the controlled bracket model, drawing, revision and relevant mating geometry
State material grade, thickness, condition, grain or appearance direction and alternatives
Identify load path, locating faces, fastener axes, adjustment slots and clearance zones
Define bend intent, reliefs, critical formed relationships and accepted inspection state
List hardware, joining, marking, edge, finish, masking and packaging requirements
Provide prototype and repeat quantities, inspection scope, reports and acceptance references
Questions before routing
These answers prepare the request; the reviewed quote controls project-specific commitments.
Provide the formed 3D model as the controlling geometry and a flat pattern only as a marked reference. Pattern length depends on the K-factor and on the tooling the supplier actually uses, so a pattern developed elsewhere generally comes out the wrong length. Supply material, thickness, bend radii and grain direction where a bend is tight, and mark which faces are datums.
From where they are measured. Holes on a single flat face are commonly held to ±0.13 mm from a cut edge; holes across a bend are commonly ±0.5 mm and looser, because bend angle and flat-pattern development both add error. The practical answers are to keep a mounting pattern on one face wherever possible, and to slot holes that must span a bend — a slot 1 mm longer than clearance absorbs variation a round hole cannot.
Usually a datum mismatch. If the drawing measures from a convenient edge but the bracket locates in the assembly on a different face, then bend-angle variation of ±1° — about 1.7 mm at the end of a 100 mm flange — lands on the inspected dimension rather than the functional one. Set the drawing datum on the face that actually locates the part in the assembly, and the two measurements start agreeing.
It depends on the hardware and the finish. Self-clinching nuts and studs are usually installed before coating, then masked, because installation after coating damages the film. Powder adds 50 to 100 µm per surface, which closes a thread if it is not masked or chased afterward. Confirm the hardware's minimum sheet thickness and edge distance against your chosen gauge, and state the sequence and masking on the drawing.
Both route through the network and the per-part cost falls substantially with quantity, but they are different processes rather than the same one scaled. Prototype brackets are often hand-formed at ±0.5 mm and ±1°; repeat batches justify tooling and fixtures that hold tighter and behave differently on springback. So a prototype's measured tolerances do not automatically transfer, and neither does its price — in either direction. State the batch size and whether repeat releases are expected with the first order, and both the prototype and the repeat price come back on the reviewed quote.
