Translate subsystem cleanliness and interface needs into part-level controls
Electronics equipment can combine precision motion, thermal management, vacuum or gas handling, electrical isolation, optical alignment and strict contamination control. Not every component needs the most demanding specification. The buyer should identify which surfaces, passages and materials enter a sensitive environment and which parts are ordinary structural or protective elements, so cost and evidence follow actual risk.
MakeNexa routes CNC, sheet metal, polymer, additive, finish and assembly work through project-matched suppliers. Requirements may include material lot records, controlled cleaning, packaging, roughness, leak or dimensional checks, but they are never inferred from the industry label. Exact supplier eligibility, process, cleanliness scope, inspection, price and timing are confirmed in the reviewed RFQ.
Typical program needs

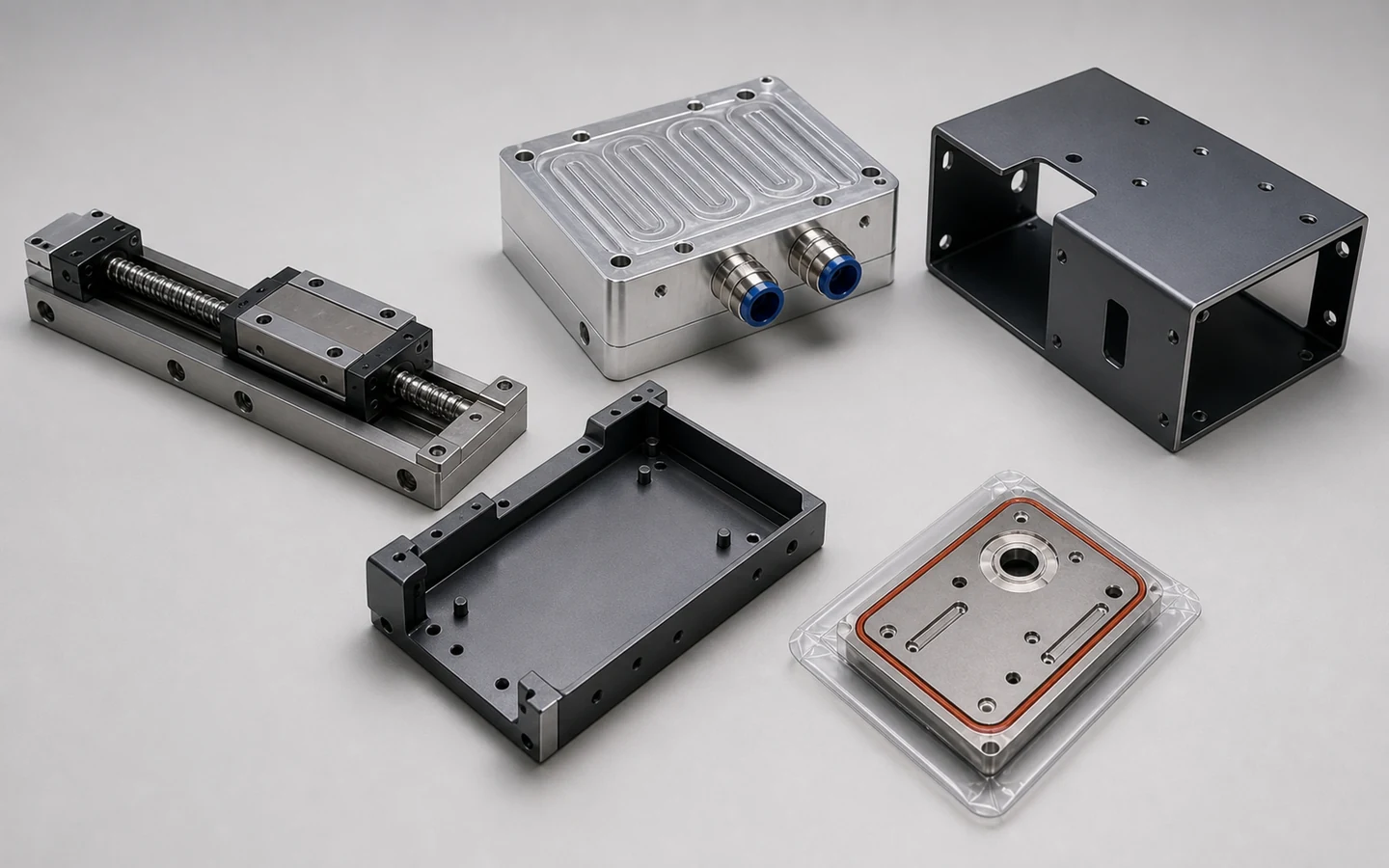

Mechanical part needs across electronics equipment
Classify components by interface and environment before selecting process or evidence depth.
Thermal and fluid components
Heat sinks, cold plates, manifolds and channels require material, media, cleanliness, sealing and test context.
Enclosures and shielding
Covers, racks and housings combine formed geometry, grounding, ventilation, coating, hardware and access.
Insulators and handling fixtures
Polymer parts and tooling may require electrical, wear, chemical, particle and dimensional-condition review.
Application risks
Requirements that should not be implied by the industry name
State the zone, test and evidence that the supplied part actually needs.
Cleanliness level
Define particles, residues, cleaning method, protected passages, packaging and verification for relevant surfaces only.
Vacuum and leak context
Pressure range, media, rate, test method, seals, joints and surface requirements must be project-specific.
Grounding and insulation
Coatings, masks, material, creepage, contacts and assembly interfaces need controlled electrical intent.
Thermal stability
Heat loads, gradients, expansion, cooling, material condition and alignment can interact across the assembly.
Sourcing paths
Manufacturing routes used for equipment components
The route follows geometry and zone requirements, not an assumption that every part is ultra-precision.
Precision CNC machining
Used for controlled datums, housings, thermal parts, manifolds and motion interfaces with defined inspection.
Sheet metal and enclosures
Used for racks, panels, covers and frames requiring hardware, grounding, coating and assembly access.
Engineered polymer components
Machined, molded or printed insulators, guides and fixtures are selected by environment, wear and cleanliness.
Program decision table
Electronics and semiconductor part decisions and the values behind them
Typical published values for the materials and processes common in electronics and semiconductor equipment work. Achievable results depend on the specific part and supplier route, and the project requirement is confirmed on the reviewed quote rather than from this table.
| Decision area | Typical published value | Review focus |
|---|---|---|
| Thermal path material | Copper C110 at about 388 W per metre-kelvin against 6061 aluminium at 167 and 304 stainless at 16 | Whether the mass and machining cost of copper is justified |
| Thermal interface flatness | Commonly 0.05 mm and tighter across a heat-sink mating face, measured in the free state | Contact pressure and interface material often dominate over bulk conductivity |
| Electrical conductivity | C110 at 101% IACS, C145 tellurium copper at about 93% with far better machinability, C360 brass at 26%, 6061 at 43% | The conductivity requirement stated as a measured value on the finished part |
| Conductive finish | Chem film under 1 µm remains conductive; anodize at 5 to 25 µm and powder at 50 to 100 µm both insulate | Every grounding and bonding path identified and masked |
| Vacuum surfaces | Electropolished 316L, commonly specified at Ra 0.4 µm or better, with electropolishing removing 10 to 40 µm | Surface finish stated with its measurement method under ASME B46.1 |
| Vacuum design | Blind tapped holes trap gas; vented screws and through-features are the usual answer | Whether the design has trapped volumes at all |
| Cleanliness | A stated cleaning process with an acceptance test, not the word clean | Which test, at what level, and who performs it |
| Residue sources | Machining coolant, blasting media embedded in soft substrates, tumbling compound and coating overspray all leave residue | A specified cleaning step after each operation that leaves one |
| Copper machining | C110 rates about 20% on the machinability scale against 100% for C360 brass — it smears rather than cutting | Whether C145 at about 85% machinability and 93% IACS is the better purchase |
| Copper joining limit | C110 embrittles above roughly 400 °C in a reducing atmosphere; brazed assemblies use oxygen-free C101 or C102 | The joining process stated before the alloy is fixed |
| Marking | Laser annealing leaves no material removal; engraving removes 5 to 50 µm and breaches a passive or anodic layer | Where marking is permitted, and its sequence with finishing |
| Documentation across processes | Material certificates, dimensional reports, finish certificates and cleanliness records are separate deliverables | Which evidence each process must produce |
