Industry sourcing decision
Machine builders source welded bases, machined plates, shafts, bearing housings, guards, manifolds, fixtures, wear parts and replacement components that must work together. The key is to control interfaces and operation sequence across different processes—not to quote a machine as a loose collection of drawings. MakeNexa reviews the component package and routes it through a global supplier network. Material, envelope, tolerance, quantity, process, supplier fit, inspection, price and lead time are confirmed for each RFQ; MakeNexa does not represent these parts as output from owned factories.
Application context

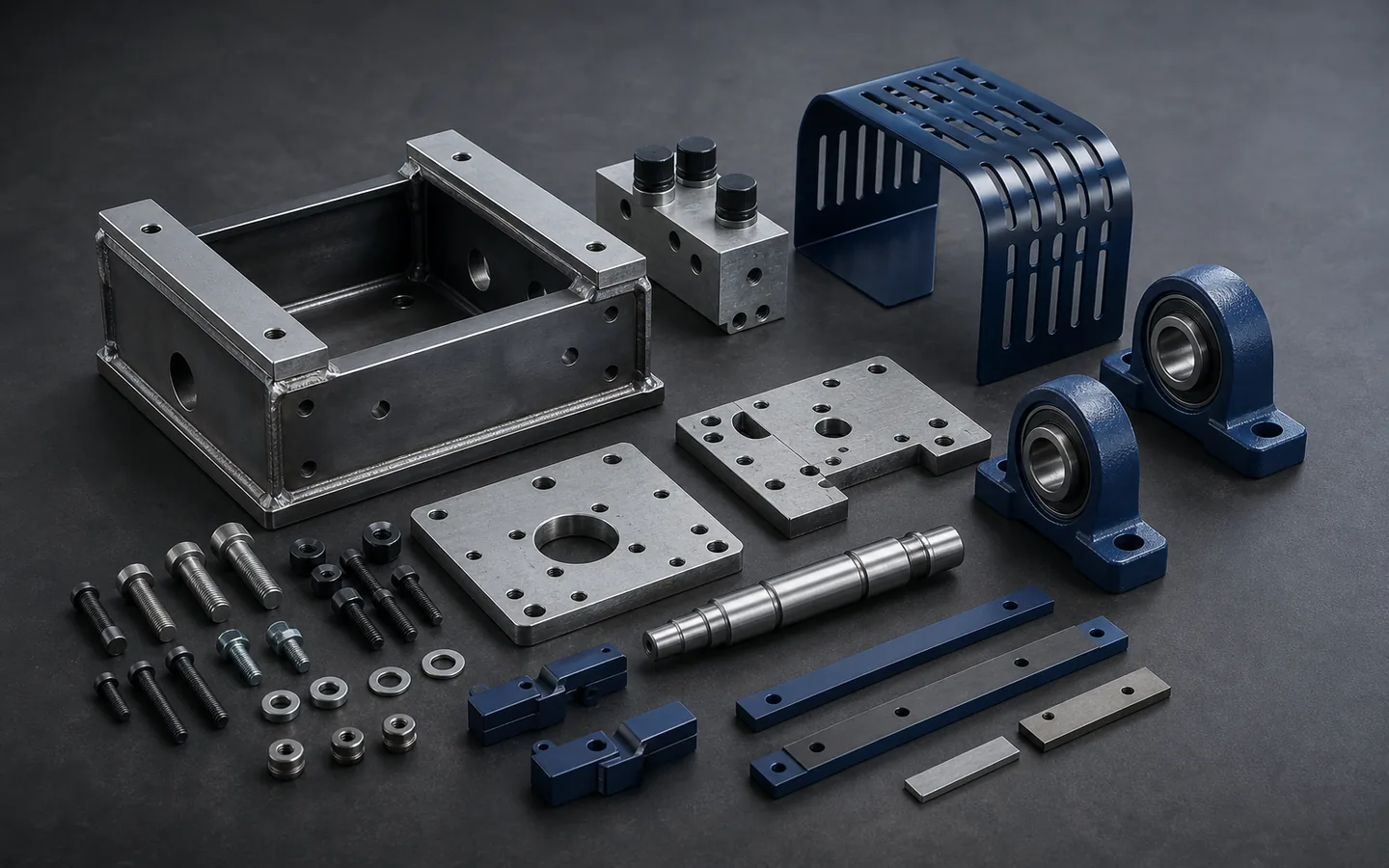

Break the machine into manufacturing and assembly boundaries that match function. A welded base may establish datum pads after stress and distortion management; machined rails and bearing housings may control alignment; guards and enclosures may control access and safety separation; manifolds and wear parts may require serviceability. Provide loads, motion, mating components, installation space and final alignment method so each part can be reviewed in its subsystem context.
Then define who owns the sequence. State whether the RFQ covers loose components, welded and finish-machined fabrications, installed hardware, subassembly, testing, protective treatment or packaging. Include purchased-part models, mounting references, inspection state and replacement strategy. MakeNexa can route multiple processes and coordinate quote clarification, but complete-machine performance, regulatory safety, controls integration and commissioning remain with the responsible machine builder unless a separately defined scope says otherwise.
Typical program needs
This route helps when interface control and operation sequence matter as much as any individual manufacturing process.
Frames, stands and crossmembers may combine cut stock, plates, joints and machined pads. Define load paths, datum strategy, weld access, distortion allowances, finish-machining sequence, lifting points and coating exclusions.
Shafts, bearing housings, mounting plates, rails and couplings depend on coaxiality, flatness, spacing and assembled adjustment. Share the motion stack, fits, lubrication context and how alignment will be established and verified.
Fabricated covers and doors require defined clearances, hinges, latches, viewing areas, cable paths and finish zones. The machine builder retains responsibility for safety assessment; suppliers need controlled geometry and hardware scope.
Workholding, fluid distribution, change parts and wear items benefit from clear locating logic, media, replaceable interfaces and revision identity. Define which parts are consumable, interchangeable or matched to a specific machine revision.
Application risks
Machine projects lose time when each component is manufacturable alone but the sequence and interfaces are incomplete.
A correct part can still block tool access, cable routing, bearing installation, door swing or maintenance. Provide adjacent geometry, access direction, removable components and installation sequence around critical interfaces.
Mounting plates, shafts and frames need the governing loads, stiffness assumptions, adjustment range and locking approach. Translate commissioning knowledge into drawings or requirement notes that a supplier can quote and inspect.
Machining pads before welding, coating a surface before final boring or omitting stress and distortion planning can undermine alignment. State the intended fabrication, treatment, machining, inspection and finish order.
Bearings, fasteners, inserts, seals, fittings, sensors and handles need a clear source and installation boundary. Provide approved part numbers or interface data and state whether they are buyer-supplied, supplier-sourced or reference-only.
Sourcing paths
The best quote boundary is the smallest one that still controls the process sequence and interfaces that create value.
Source machined plates, shafts, housings, wear strips and brackets individually when the machine builder controls assembly, alignment and purchased hardware. Define interface dimensions, preservation and part identification.
Combine cutting, welding, stress or distortion management and final machining when datum pads and bores depend on the welded state. Control datum transfer, coating exclusions, lifting and inspection after the final operation.
Group parts, hardware and selected assembly when the supplier can verify a mechanical interface or motion unit. Specify supplied components, torque or fit requirements, functional check, preservation and what remains outside the supplier's scope.
Program decision table
Typical published values for the materials and processes common in machine-building work. Achievable results depend on the specific part and supplier route, and the project requirement is confirmed on the reviewed quote rather than from this table.
| Decision layer | Typical published value | Routing consequence |
|---|---|---|
| Welded frames | ASTM A36 plate at 250 MPa / 36 ksi minimum yield; as-welded flatness commonly 1 mm per metre | Machined interfaces cut after welding, with 2 mm to 5 mm of stock left to clean up |
| Frame datums | Established on machined faces created after welding, not on as-welded surfaces | The most common cause of an unbuildable weldment drawing |
| Shafts | 4140 from about 415 MPa / 60 ksi annealed to roughly 1520 MPa / 220 ksi quenched and tempered, commonly stocked pre-hardened at 28 to 32 HRC | Whether the part is machined from pre-hardened stock or heat treated after |
| Journal surfaces | Ground to Ra 0.2 to 0.4 µm with size held to ±0.005 mm, after heat treatment rather than before | Grinding stock of 0.2 to 0.4 mm left per surface |
| Bearing bores | Commonly ±0.013 mm, with the surrounding structure at ±0.125 mm standard practice | Precision at interfaces, not across the fabrication |
| Bearing counterface | A bronze bushing needs a harder shaft to run against, commonly a hardened journal at 50 HRC and above | The mating part is part of the specification |
| Plates and mounting surfaces | Machined flat to 0.05 mm and better where components locate; ground where tighter | Whether the part is rigid enough to hold it in the free state |
| Manifolds | Internal cross-hole burrs at bore intersections are the most likely to break loose in a hydraulic circuit | A dedicated deburring route with a stated inspection method |
| Guards and covers | 1.5 mm and 2.0 mm sheet, formed at roughly 1 times material thickness in 5052-H32 | Gauge chosen against hardware minimums and stiffness |
| Wear components | D2 at 58 to 62 HRC for abrasion; 4140 at roughly 52 HRC for load | Which failure mode applies |
| Corrosion protection | Bare carbon steel rusts within days; powder at 50 to 100 µm per surface on frames, zinc at 5 to 25 µm on hardware | A protective finish specified, not assumed |
| Replacement parts | Revision control matters more on spares than on first builds | A controlled revision identifier and change authority |
Industry RFQ inputs
Provide subsystem context and operation sequence so each routed quote covers a complete, inspectable boundary.
Complete packages move faster: revision-matched CAD, critical dimensions, quantity and material notes are enough to open engineering review across the network.
Get a QuoteSubmit controlled part and assembly models, drawings, revision and machine context
Define subsystem function, loads, duty cycle, environment and failure consequence
Identify datums, fits, alignment features, motion interfaces and adjustment ranges
List material, stock, welding, treatment, machining, coating and assembly sequence
Clarify purchased hardware, seals, bearings, fittings and buyer-supplied components
State inspection state, reports, functional checks, packaging and preservation needs
Provide quantities, spares, machine variants, replacement identity and change rules
Questions before routing
These answers prepare the request; the reviewed quote controls project-specific commitments.
Yes, and quoting them together gives a better result because the interfaces are where the problems live. A welded frame moves 1 mm per metre and more, a machined plate holds 0.05 mm flatness, and a formed 5052 cover holds ±0.5 mm across a bend — those tolerances need reviewing against each other rather than individually, and the machined interfaces have to be cut after welding with 2 mm to 5 mm of stock left to clean up distortion. Send the assembly context with the mating interfaces marked, and supplier fit, sequence, price and lead time come back on the reviewed quote.
Together, because the sequence is the design decision. A welded assembly moves 1 mm per metre and more, so the located interfaces have to be machined afterward with 2 mm to 5 mm of stock left on those faces to clean up the distortion — and the drawing's datums have to sit on those machined faces rather than on as-welded surfaces. Quoting the fabrication alone tends to produce a drawing that cannot be built to tolerance.
Assembly and hardware installation are covered by the supplier network, and the sequence matters. Self-clinching hardware is normally installed before coating and masked, since powder adds 50 to 100 µm per surface and closes a thread. Bearings are installed after finishing and after any operation exceeding their temperature rating — a 200 °C powder cure exceeds most. State which components are customer-supplied and which are in scope.
From a controlled definition rather than a worn sample where possible. Reverse-engineering a used part captures the wear, not the original geometry — a journal measured after service comes out undersize and a bore oversize. Where only a sample exists, state which features are functional. And state the material condition: a shaft that was 4140 quenched and tempered to roughly 52 HRC will not last if replaced in annealed stock at 415 MPa.
Because they are the burrs nobody can reach and the ones that break loose downstream. At the intersection of two internal bores no hand tool and no mass-finishing media reaches, so the burr survives machining, survives tumbling and then releases into a hydraulic or pneumatic circuit in service. The routes that do work — abrasive flow machining, thermal deburring, a dedicated tool — are separate specified operations. Identify each intersection on the drawing with a stated requirement and inspection method.
Next step
Send the application context with the controlled part package. MakeNexa routes capable suppliers from a global network covering competitor-class process categories, then returns a prepared quote or focused clarification for your revision.
