Manufacturing service decision
Sheet cutting begins with a flat profile, but the useful manufacturing requirement extends beyond its outline. Material and thickness, internal features, edge condition, grain direction, downstream bends, finish and inspection all affect the route. MakeNexa reviews those inputs across its supplier network and returns a project-specific route and quote rather than promising one cutting method for every sheet part.
Route decision
Submit a controlled 3D model or flat pattern together with a drawing that identifies material, thickness, revision and critical features. A DXF may communicate planar geometry efficiently, but it does not replace requirements for grain, cosmetic faces, edge breaks, protected zones, inserts, forming or final inspection. State whether MakeNexa should quote cut blanks only or coordinate the downstream work as one managed package.
The reviewed route can include laser, waterjet, punching, routing, sawing or another compatible method depending on material, thickness, geometry, heat sensitivity, edge intent, quantity and supplier fit. Kerf, taper, heat effect, pierce behavior, burrs, minimum webs and small holes are route-dependent. Critical interfaces should therefore be identified by function and accepted condition rather than inferred from a generic cutting-process name.
Best-fit parts and programs
The route works best when engineering can see how the blank will be handled, formed, finished and measured after cutting.

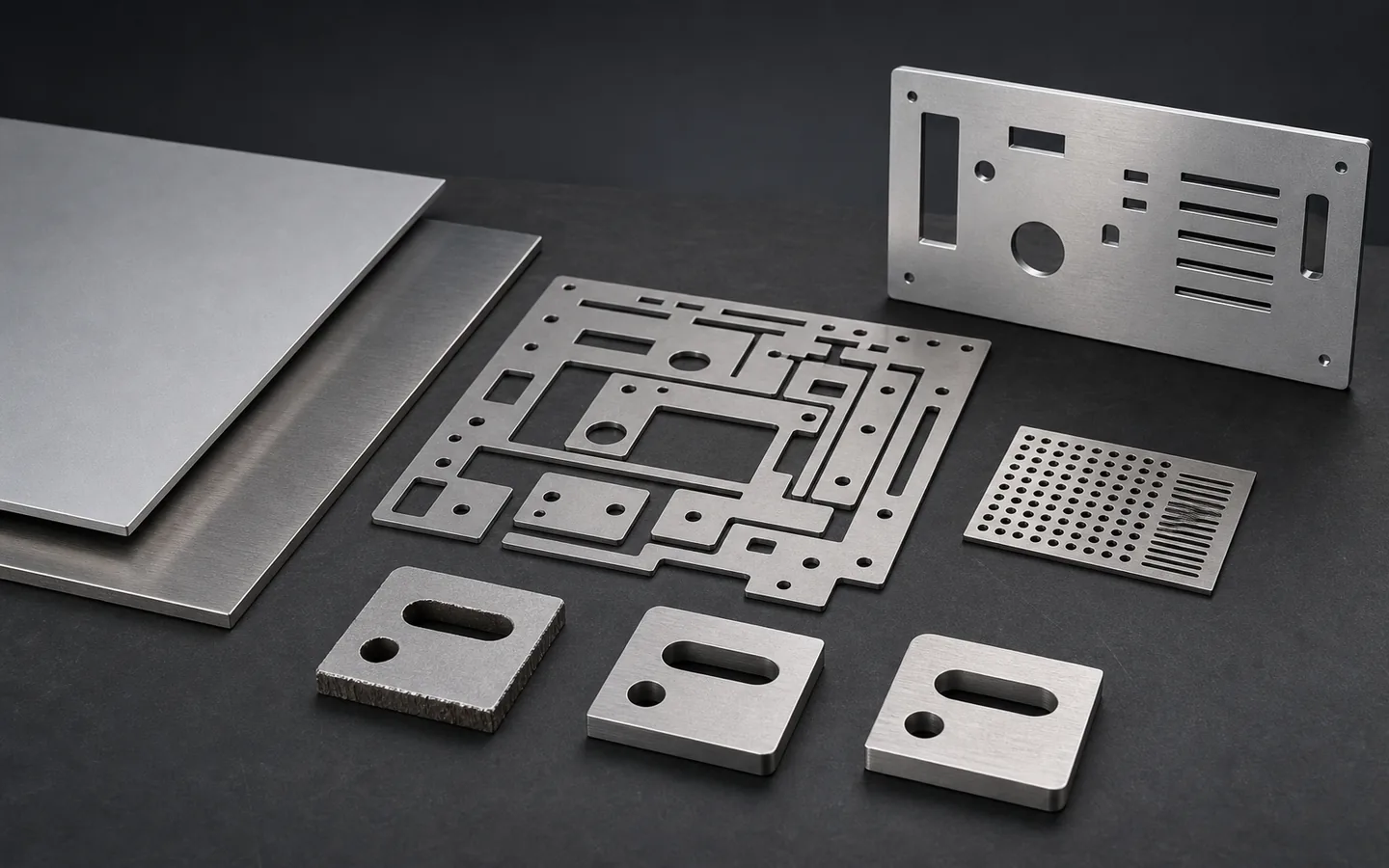

Flat plates, shims, panels and blanks can be reviewed as cut-only work when edge condition, flatness, cosmetic protection, marking and packaging are defined. Identify any surface that must remain free from handling marks or protective-film damage.
When cutting feeds a bending operation, provide the formed model and bend requirements as well as any flat pattern. The supplier route should own bend allowance, reliefs and final geometry unless a released flat pattern is contractually controlling.
Slots, perforations, tabs, narrow webs and closely spaced cutouts can drive heat, distortion, tool access and handling decisions. Mark functional patterns and state which relationships matter after all downstream operations.
Define grain direction, film, brushed face, coating, masking, exposed edges and cosmetic zones before cutting. Finish sequence may change nesting, tab placement, edge preparation and packaging.
Feasibility checks
A clean outline can still be ambiguous when revision, edge, surface and secondary-operation expectations are missing.
State which file controls and keep names, units, scale and revision matched. Duplicate or open contours, stacked lines and exported construction geometry should be removed before release.
Hole diameter, slot width, corner radius and web spacing interact with material and thickness. Identify functional features so the reviewed route can propose machining, punching or another secondary operation where appropriate.
General deburr, controlled edge break, sharp functional edge and cosmetic edge are different requirements. Mark protected edges and internal intersections instead of relying on the word deburr alone.
Residual stress, dense cutting, heat input, thin material and finish can affect shape. Define the final free-state or restrained acceptance and where flatness is functionally required.
Route options
Method selection follows the released requirement; it should not be fixed from a process label before geometry and condition are reviewed.
A reviewed laser or other thermal route may suit many metal profiles. Heat-affected edges, pierce conditions, reflections, film and distortion-sensitive features remain material- and supplier-specific.
Waterjet, routing, sawing or another route may be considered when heat input, thickness, material family or edge intent controls. Taper, surface, fixturing and secondary cleanup still require review.
Coordinate cutting with bending, hardware, welding, finishing and inspection when final relationships matter more than the blank alone. This reduces handoff ambiguity while keeping every operation quote-specific.
Decision comparison
Typical published capability for the common flat-cutting routes. Achievable tolerance, edge quality and thickness depend on machine, material and the supplier's equipment, and the project requirement is confirmed on the reviewed quote rather than from this table.
| Decision layer | Typical published value | Routing consequence |
|---|---|---|
| Laser cutting tolerance | Commonly ±0.13 mm on thin sheet, opening up as thickness grows | The default route for most flat parts in metal |
| Laser kerf | About 0.1 to 0.4 mm depending on thickness and power | Small features and narrow webs have to clear the kerf |
| Laser thickness range | Routine to about 20 mm in mild steel on common industrial machines, less in stainless and much less in aluminium and copper | Reflective and thick material pushes the part to another route |
| Laser heat-affected zone | A narrow hardened and oxidised band at the cut edge that can affect subsequent bending and finishing | Whether edge condition or subsequent forming matters |
| Waterjet tolerance | Commonly ±0.13 mm, with no heat-affected zone at all | Heat-sensitive materials, thick sections and non-metals |
| Waterjet kerf | About 0.8 to 1.2 mm — considerably wider than laser, with a slight taper through the cut | Small holes and fine internal features are harder |
| Plasma tolerance | Commonly ±0.5 mm with a wider heat-affected zone | Heavy plate where the edge will be machined afterward |
| Minimum hole diameter | At least equal to material thickness on laser, and larger on waterjet and plasma | A 1 mm hole in 3 mm plate is not a cutting operation |
| Minimum web and slot width | At least material thickness, so a narrow web does not overheat and distort | Whether the nest geometry is cuttable |
| Edge squareness | Laser edges taper slightly; waterjet tapers more, and the taper direction depends on cut speed | Whether edge squareness is a stated requirement |
| Part flatness | Thermal cutting induces stress; thin parts with large cut-outs can bow measurably | Whether flatness is called and how it is measured |
| File requirements | A DXF or DWG flat profile defines the cut; a drawing defines tolerances, material, finish and which features are critical | Both are needed — a profile alone is not a specification |
Quote inputs
Provide the final use of the blank so the quote does not stop at an isolated outline.
Complete packages move faster: revision-matched CAD, critical dimensions, quantity and material notes are enough to open engineering review across the network.
Get a QuoteSubmit the controlled model, drawing, DXF if applicable, units and matching revision
State material grade, thickness, condition, grain direction and permitted substitutions
Mark critical holes, slots, webs, tabs, internal corners and pattern relationships
Define burr, edge-break, protected-edge, flatness and cosmetic requirements
List bending, hardware, welding, machining, marking, finish and masking scope
Provide quantities, packaging, inspection, report and final-state acceptance needs
Questions before routing
These answers prepare the request; the reviewed quote controls project-specific commitments.
Yes, and they do different jobs. The DXF or DWG defines the profile geometry the machine cuts. The drawing defines material, thickness, tolerances, which features are critical, edge condition, flatness, finish and any subsequent operation. A profile alone is not a specification — it says where to cut but not what is acceptable. Where a 3D model exists, supply that as the controlling geometry and mark the flat profile as derived.
All three route through the network and the requirement selects the process. Laser covers most metal work at commonly ±0.13 mm with a narrow 0.1 to 0.4 mm kerf, routine to about 20 mm in mild steel, leaving a narrow heat-affected band at the edge. Waterjet holds similar tolerance with no heat-affected zone at all, which suits heat-sensitive materials, thick sections and non-metals, at a wider 0.8 to 1.2 mm kerf with slight taper. Plasma at around ±0.5 mm suits heavy plate where the edge is machined afterward. State material, thickness, tolerance and edge requirement rather than the process.
Down to about the material thickness on laser — so a 3 mm hole in 3 mm plate is routine and a 1 mm hole is not. Waterjet and plasma need larger minimums still because their kerf is wider. Below that, holes are drilled, punched or machined as a secondary operation. Narrow webs and slots follow the same rule: below material thickness they overheat and distort. State which holes are functional so the route can be planned.
Thermal cutting puts heat and stress into the sheet, and a thin part with large cut-outs releases that stress unevenly. It is a normal outcome rather than a fault unless flatness was specified. If the part must be flat, say so with a numeric requirement, a measurement method and a free-state condition, and expect a flattening or stress-relief operation to appear as a separate line. Waterjet avoids the problem entirely by cutting cold.
Yes, and quoting the whole route together is better because the operations interact. A laser-cut edge carries a hardened band that affects bending; hole positions relative to bends need at least 2.5 times material thickness plus the bend radius; and finishing changes dimensions, with powder at 50 to 100 µm per surface and anodize at 5 to 25 µm closing clearance holes and threads unless masked. Quoting the cut alone tends to produce a flat pattern that cannot be formed or a part whose holes close after coating. Send the formed model with the complete scope.
Next step
Send geometry and process requirements for review. MakeNexa routes capable suppliers from a global network covering competitor-class process categories, then returns a prepared quote or focused clarification for your revision.
