CNC cost is the result of a manufacturing route, not a single machine-time number. This guide connects design and purchasing decisions to setups, stock, cutting access, special tools, secondary work, inspection and program stability so you can ask for useful alternatives without weakening the part's function.
Use this guide

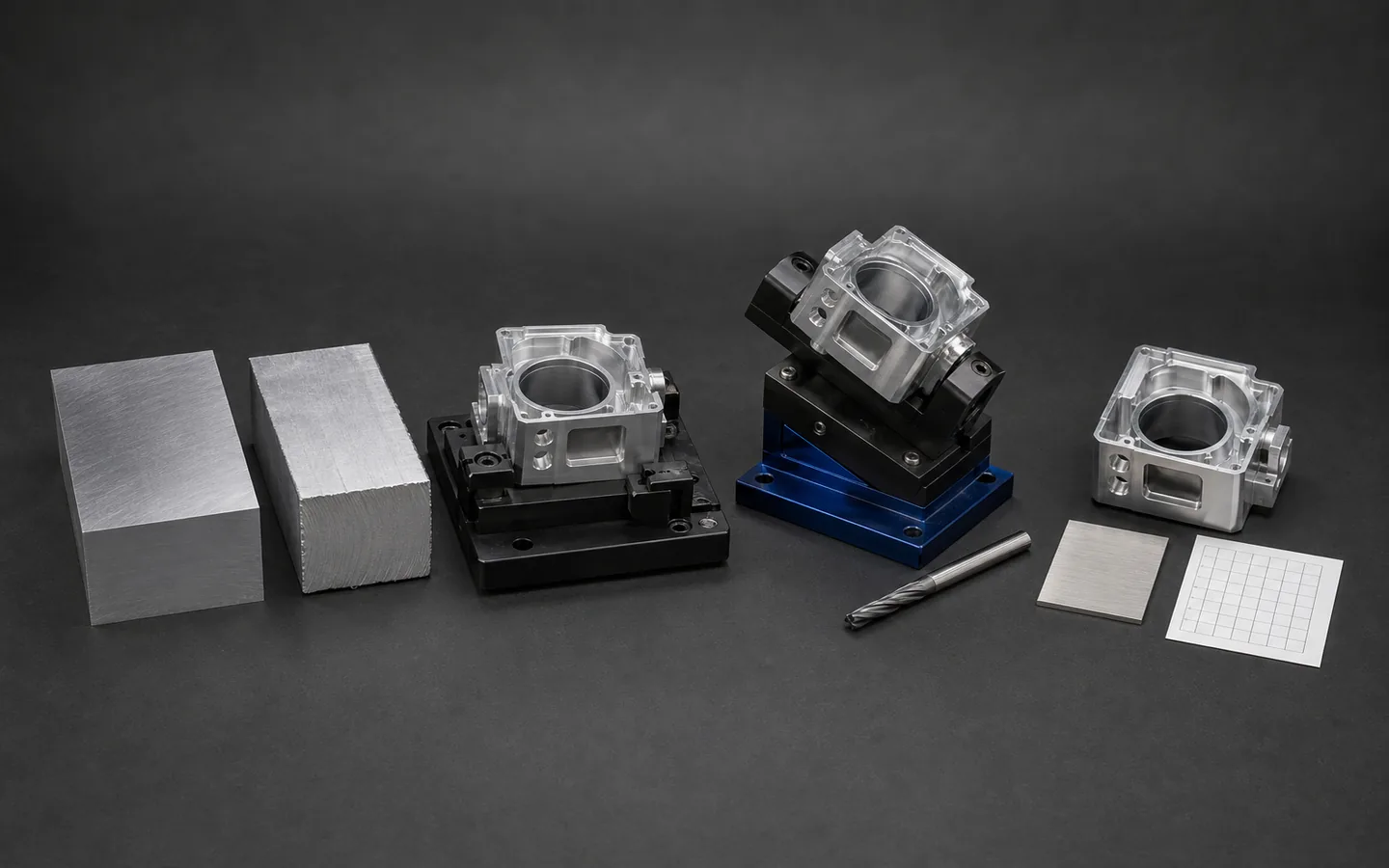

Start with the complete part and count the events required to turn available stock into the accepted condition. Material must be sourced and prepared; the part must be located and supported; each feature needs tool access; critical relationships must survive any transfer between setups; and finishing or inspection may add separate suppliers, handling and records. A simple-looking component can therefore carry a complex route, while a visually complex part may be efficient when its features share one stable setup and common tools.
Separate fixed function from negotiable implementation before the RFQ. Mark the interfaces, material properties, final surfaces and evidence that cannot change, then identify acceptable stock forms, radii, feature simplifications, quantity bands or alternate finishes. MakeNexa reviews the submitted package and possible supplier routes; it does not publish an instant price, universal savings percentage or assured cost outcome. Price, timing and alternatives depend on the specific geometry, revision, quantity, material, finish, inspection scope and supplier fit.
Design priorities
Review the decisions that create setup time, cutting time, outside processing and acceptance effort before comparing quotes.
Each orientation needs a stable way to locate and clamp the part without blocking required features or distorting controlled surfaces. Extra transfers can add programming, fixtures, handling and datum-transfer risk even when the cut itself is short.
Grade, condition, product form, standard size and usable allowance affect procurement, waste and preparation. A near-net form may reduce removal but add tooling, minimum quantity or a different supply risk that must be evaluated across the program.
Deep pockets, narrow slots, small internal radii, high walls, long bores and interrupted features can require extended tools, slower engagement or additional operations. Group accessible features and allow practical cutter geometry where function permits.
Heat treatment, coating, marking, cleaning, assembly, special packaging and detailed inspection add routing and coordination. Define which dimensions apply after those operations and which evidence is actually needed for receiving.
Common review gaps
The most expensive requirement may be a relationship, note or secondary operation rather than the largest visible feature.
A deep cavity paired with a small internal radius may force a long, slender cutter and conservative cutting conditions. Increasing the radius, opening access or separating an insert can change the feasible route when the interface allows it.
A relationship spanning opposite faces or multiple setups may require careful datum recovery, dedicated fixtures and more inspection. Put the control on the functional relationship and avoid duplicating it with conflicting coordinate dimensions.
A small learning batch can carry fixture, program, finish and report setup that would be distributed differently in repeat production. State whether the order is for design learning, qualification, bridge supply or a stable recurring need.
Late changes can invalidate material, programs, fixtures, gauges, outside-processing instructions and inspection templates. Provide one controlled revision and identify likely changes before requesting quantity-based pricing.
Practical choices
A useful cost review names what may change and requires the quote to return the consequences clearly.
Allow a larger internal radius, through-feature, standard thread, accessible relief or separate component where it preserves the assembly function. Ask engineering to identify any effect on finish, cleaning, strength or inspection.
State the property, condition and evidence that matter, then permit a named alternate grade or product form for review. Do not accept a substitution that changes service behavior or documentation without explicit approval.
Request relevant quantity bands, release cadence and expected revision stability. A supplier can then consider dedicated workholding, stock commitments or repeat controls without treating an early prototype as a frozen production program.
Design decision table
Typical published practice for the factors that move CNC price. Actual cost depends on geometry, material, quantity and supplier, and the project requirement is confirmed on the reviewed quote rather than from this table.
| Cost layer | Typical published value | Buyer decision to provide |
|---|---|---|
| Quantity effect | At 1 to 10 parts setup dominates; the second part often costs a fraction of the first | The real quantity, and whether repeats are expected |
| Tolerance band | ±0.125 mm standard practice costs nothing extra; ±0.025 mm adds finishing passes and inspection; ±0.005 mm implies grinding | Which few features need the tighter band |
| Setup count | Each additional setup adds machine time and roughly 0.05 mm of positional error between faces | Which relationships must be cut in one setup |
| Pocket depth | Beyond about 4 times the cutter diameter, deflection and chatter force slow passes with small tools | Whether the pocket can be shallower or opened up |
| Internal radii | A 1 mm radius needs a Ø2 mm cutter; a 3 mm radius lets a Ø6 mm tool remove material several times faster | The largest radius the function allows |
| Thin walls | Below about 0.8 mm in metal, walls deflect under cutting load and need slower passes and extra support | Which walls are thin and why |
| Material removal | Turning a 50 mm bar to a 20 mm shaft removes about 84% of the stock as chip | Whether near-net stock or a different form is available |
| Material cost | 7075 commonly 1.5 to 2 times 6061; titanium several times stainless per kilogram | Whether a substitute grade is acceptable |
| Machining speed by material | Aluminium at 300 m/min and above; titanium Grade 5 commonly 30 to 60 m/min; nickel alloys 15 to 30 m/min | The material named early, since it can dominate the price |
| Surface finish | Ra 1.6 to 3.2 µm as machined costs nothing; Ra 0.8 µm needs a dedicated pass; below that implies grinding | Which surfaces are functional |
| Secondary operations | Deburring, heat treatment, finishing and inspection each add their own line | The complete route stated rather than discovered |
| Inspection scope | A report on named critical characteristics rather than every dimension on the drawing | Which characteristics carry consequence |
Turn the guide into an RFQ
Provide enough program context for engineering to compare feasible routes without guessing which requirements are negotiable.
Complete packages move faster: revision-matched CAD, critical dimensions, quantity and material notes are enough to open engineering review across the network.
Get a QuoteSubmit one controlled model and matched drawing with part function and critical interfaces identified
State material grade, condition, stock-form constraints and any permitted alternatives
Separate functional tolerances and surfaces from general or cosmetic preferences
Define treatment, finish, masking, hardware, marking, cleaning and packaging in the final sequence
List inspection records, sampling and document needs that are required for receiving
Provide prototype and production quantity bands, release cadence, target timing and revision maturity
Questions before routing
These answers prepare the request; the reviewed quote controls project-specific commitments.
Rarely the thing people expect. The big three are deep narrow pockets past about 4 times the cutter diameter, internal corner radii below about 1 mm that force a Ø2 mm tool, and blanket tolerances or finishes — applying ±0.025 mm or Ra 0.8 µm across a whole part rather than on the few features that need them. Material choice can dominate everything else: titanium cuts at 30 to 60 m/min against 300 and above for aluminium.
Enlarge internal corner radii wherever function allows — moving from 1 mm to 3 mm lets a Ø6 mm tool replace a Ø2 mm one and removes material several times faster. Reduce pocket depth below about 4 times cutter diameter. Move the block tolerance back to ±0.125 mm and call ±0.025 mm only where it matters. Remove finish callouts from surfaces nothing touches. Consolidate features onto fewer faces to cut setups.
It reduces it, but by an amount that depends entirely on the part. At 1 to 10 pieces setup dominates so completely that the second part costs a fraction of the first; past a few hundred, cycle time takes over and the curve flattens. A 30-second cycle behaves very differently from a 30-minute one. Quantity also has to be a commitment rather than a forecast before a supplier invests in fixturing that repeats within about 0.01 to 0.02 mm.
By setup count, cycle time, material, tolerance, finish and inspection scope — which is why overall dimensions do not predict it: a 100 mm cube can be a five-minute part or a five-hour one. The drivers are visible in the model: pocket depth past about 4 times cutter diameter, internal radii below 1 mm forcing a Ø2 mm tool, walls under 0.8 mm, and blanket ±0.025 mm or Ra 0.8 µm callouts applied where nothing touches. Material can dominate everything else — titanium cuts at 30 to 60 m/min against 300 and above for aluminium. Send the model with quantity and the critical features and a prepared quote follows.
Often more than geometry does. Stock cost is one part — 7075 commonly runs 1.5 to 2 times 6061 — but cutting speed matters more: aluminium runs at 300 m/min and above, titanium Grade 5 at commonly 30 to 60 m/min, and nickel alloys at 15 to 30 m/min. A part that machines in twenty minutes in aluminium can take several hours in a nickel alloy. State whether a substitute grade is acceptable.
Next step
Apply the guide to a real drawing and RFQ package. MakeNexa routes capable suppliers from a global network covering competitor-class process categories, then returns a prepared quote or focused clarification for your revision.
