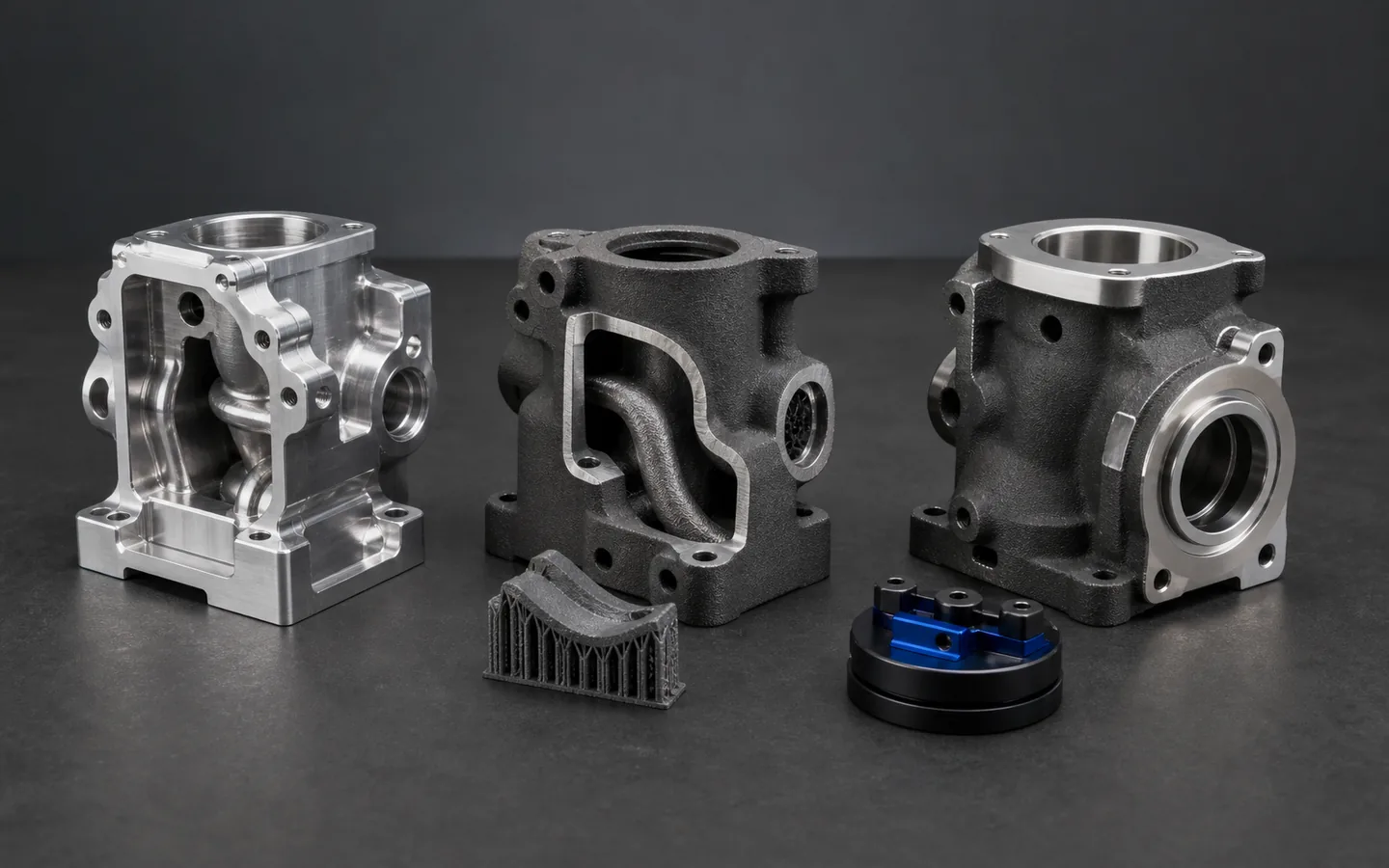

If you are weighing 3D printing vs CNC machining, decide what the part must prove first—not which process sounds newer. Additive builds layer by layer and can unlock internal or consolidated forms; CNC removes stock and often delivers controlled interfaces from practical tool access. Match the route to geometry, material condition and critical surfaces, then upload CAD so MakeNexa can review additive, subtractive or hybrid supplier routes.
Use this guide
Use 3D printing when internal passages, consolidated geometry, fast iteration or low tooling commitment drive value—and you can live with orientation, support, directional behavior and post-processing. Use CNC when stock material condition and reachable precision interfaces matter more, and cutter access plus workholding are practical.
A printed prototype does not automatically validate machined material behavior, and a machined surrogate does not validate additive internals. State hybrid intent if you will machine seals, threads or datums after printing. MakeNexa reviews both families through its network; properties, timing and price stay RFQ-specific.
Design priorities
No single factor decides the route; the finished part must satisfy all three layers in a compatible process sequence.
Additive routes can create enclosed or highly integrated forms that cutting tools cannot reach, but still need support, escape and cleaning access. Machining favors features reachable from stable setups with suitable cutter diameter and length.
Machined parts inherit a wrought, cast or other stock condition; printed parts inherit a process-specific feedstock, build orientation and thermal history. Compare the condition needed for use rather than treating matching material names as identical outcomes.
Machining can directly create controlled interfaces where tools and inspection can reach. Printed parts may need allowance and secondary machining on sealing, bearing, threaded or locating surfaces while other regions retain the built texture.
Both routes can serve prototypes and production in the right context. Consider revision frequency, nesting or machine loading, programming, support preparation, post-processing, inspection and the repeat evidence needed at the planned quantity.
Common review gaps
Route decisions fail when a visible sample is treated as proof of final material, finish or production behavior.
An alloy or polymer label does not make printed and stock material equivalent. Feedstock, orientation, consolidation, treatment, moisture and product form can change the evidence needed for the actual use condition.
Channels, lattices and enclosed cavities may be buildable but difficult to support, depowder, drain, clean or inspect. Define access and cleanliness requirements before relying on additive geometry freedom.
Layer texture, support contact and post-process variation may be unsuitable for seals, bearings, optics, fluid paths or cosmetic zones. Mark the surfaces that require machining, smoothing or a controlled reference.
A quick learning part does not establish repeat capacity, approved material, lot records or long-term economics. Re-evaluate the route when the design, quantity or acceptance plan changes.
Practical choices
The chosen path should state what it validates and which production questions remain open.
Use printing when integrated or internal geometry, iteration or low tooling commitment drives value. Define orientation-sensitive requirements, support and escape strategy, treatment, finish, inspection and any machining allowance.
Use CNC when stock material condition, accessible precision interfaces and practical subtractive geometry fit the part. Review setup count, workholding, cutter reach, waste, finishing and inspection.
Print a complex or near-net body and machine critical surfaces, or print early learning parts before moving to machining, molding or another production route. Keep validation claims limited to the condition actually tested.
Design decision table
Typical published capability for the common polymer additive routes against CNC machining. Achievable results depend on material, geometry and supplier, and the project requirement is confirmed on the reviewed quote rather than from this table.
| Decision factor | 3D-printing consideration | CNC-machining consideration |
|---|---|---|
| Dimensional accuracy | FDM at ±0.2 mm or ±0.2%; SLA at ±0.1 mm or ±0.1%; SLS and MJF at ±0.3 mm or ±0.3% | ±0.125 mm standard practice, ±0.025 mm on named precision features |
| Directional properties | FDM interlayer strength commonly 30 to 70% of the in-plane value; SLS and MJF closer to isotropic | Isotropic — the part behaves like the stock it came from |
| Material realism | Printed PA12 at about 48 MPa; printed ABS at 30 to 40 MPa in plane | The actual production grade: acetal at 70 MPa, PEEK at 100 MPa, 6061 at 276 MPa yield |
| Surface finish | Ra 8 to 15 µm on powder-bed parts; Ra 10 to 25 µm on FDM walls; Ra 1 to 5 µm on SLA up-faces | Ra 1.6 to 3.2 µm as machined, Ra 0.8 µm with a finishing pass |
| Geometric freedom | Internal channels, lattices and undercuts print without tooling access constraints | Every feature needs tool access; internal corners carry the cutter radius, so 1 mm needs a Ø2 mm tool |
| Cost driver | Build volume and height — a tall part ties up the machine regardless of how little material it contains | Setup and cycle time; deep pockets past about 4 times cutter diameter drive cost sharply |
| Quantity behaviour | Near-linear: the tenth part costs much what the first did | Strongly non-linear: at 1 to 10 parts setup dominates, and the second part is a fraction of the first |
| Thin walls | 0.5 mm on powder-bed, about 1.2 mm on FDM at a 0.4 mm nozzle | About 0.8 mm in metal, 1.0 mm in plastic, before deflection dominates |
| Heat resistance | SLA resins near 50 °C; printed PA12 melts near 178 °C | The stock material's own figures — acetal near 90 °C continuous, PEEK near 250 °C |
| Porosity and sealing | Powder-bed parts are slightly porous and can leak under pressure | Solid stock; sealing depends on geometry and finish, not on the process |
| Post-processing | Support removal, depowdering, dyeing and smoothing as separate operations | Deburring, finishing and any secondary operation as separate line items |
| Where each wins outright | Geometry that cannot be machined, and speed at quantity one | Tolerance, material realism, surface finish and repeatability |
Turn the guide into an RFQ
Describe what the part must demonstrate so engineering can compare routes without assuming the prototype and production conditions are equivalent.
Complete packages move faster: revision-matched CAD, critical dimensions, quantity and material notes are enough to open engineering review across the network.
Get a QuoteState the part function, project stage and the specific question this build must answer
Provide the complete model plus drawing controls for datums, fits, threads and critical surfaces
Define material grade, product condition, directional constraints and any permitted alternatives
Identify enclosed geometry, support or escape access, cleanliness and internal-inspection needs
Mark as-built, machined, sealed, cosmetic and other final surface conditions by zone
Provide quantity bands, revision outlook, post-processing, evidence and future production-route assumptions
Questions before routing
These answers prepare the request; the reviewed quote controls project-specific commitments.
When the geometry cannot be machined — internal channels, lattices, consolidated assemblies — or when the question being answered is about form rather than function. For fit and clearance checks, FDM at ±0.2 mm or SLA at ±0.1 mm answers in days for very little money. Once the question becomes structural, thermal or dimensional, machining in the actual production material at ±0.125 mm answers it properly.
At quantity one, usually — printing has no setup, while CNC setup dominates the price entirely at 1 to 10 parts. But the curves cross: printing cost is near-linear with quantity while machining's second part costs a fraction of the first. Geometry matters too. A simple prismatic part machines cheaply; a tall printed part ties up the machine for its full build height regardless of how little material it contains.
Routinely, and it is often the best answer. A printed part machined on its critical surfaces gets additive's geometric freedom with machining's ±0.125 mm tolerance and Ra 1.6 to 3.2 µm finish where it matters — this is standard practice in metal additive, where as-built accuracy is ±0.1 mm or ±0.2% with Ra 6 to 20 µm surfaces. Design stock allowance into the surfaces that will be machined.
No, and this is the most common source of disappointment. Printed PA12 publishes about 48 MPa tensile with some porosity and directionality; machined PA12 stock gives about 50 MPa isotropically; moulded PA12 is denser and more consistent again. Printed ABS gives 30 to 40 MPa in plane and only 30 to 70% of that across layers, against 40 to 45 MPa isotropic for moulded. Use process-specific data, not the resin datasheet.
A 3D model as controlling geometry, plus what the part must do — because that decides the route. State the load case and its direction, the service temperature, any sealing or pressure requirement, the few critical dimensions with their tolerances, cosmetic surfaces, and quantity. A model alone will get quoted on whichever process the supplier defaults to, which may not be the one that answers your question.
