A threaded insert is an interface between the parent part, installation process and mating fastener. Heat-set, helical, press-in, molded-in and mechanically locked routes solve different problems and create different geometry and inspection needs. MakeNexa reviews the complete part and assembly context before coordinating an insert route through its supplier network.
Route decision

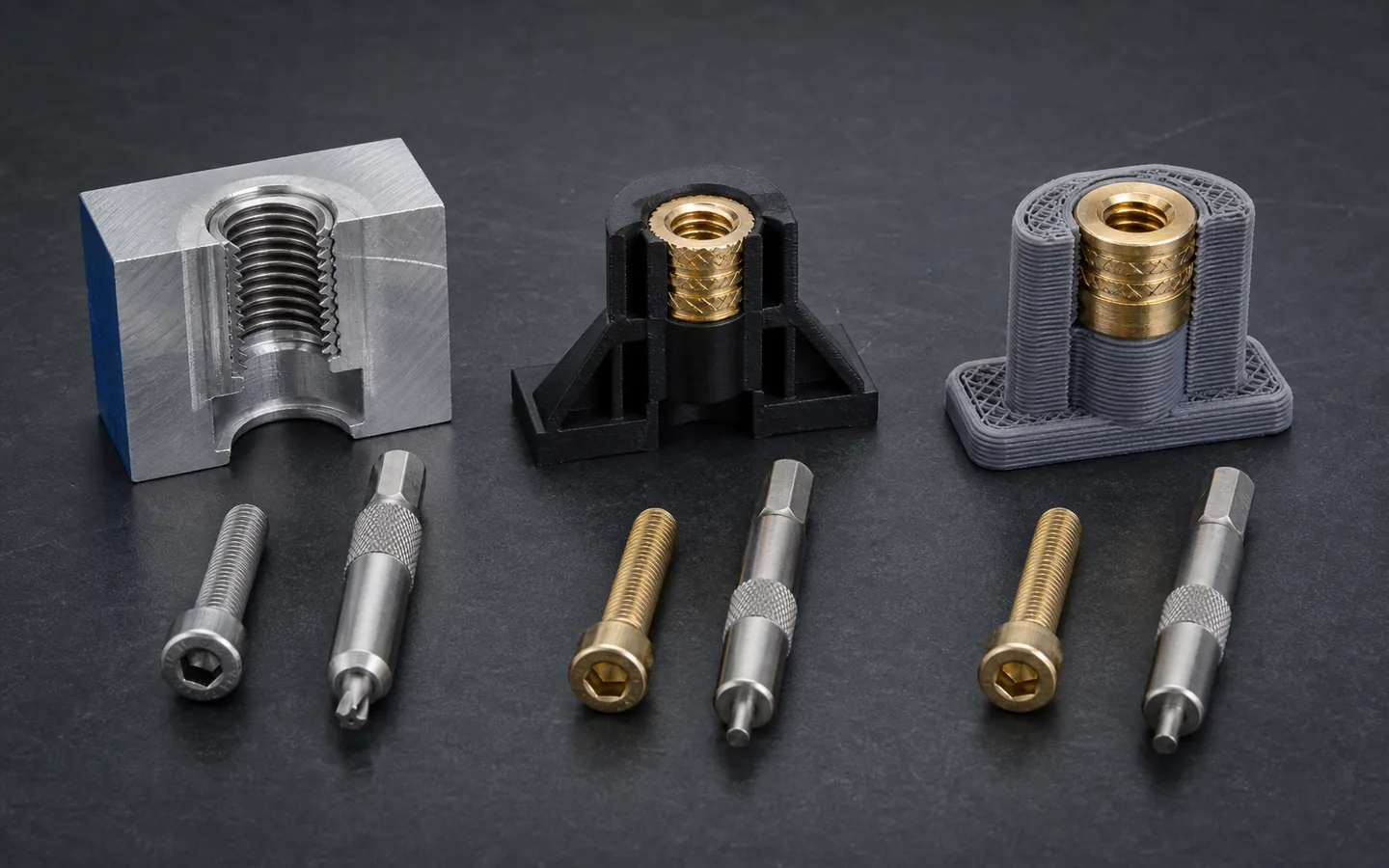

Begin with the joint rather than a generic insert category. Define the mating fastener, engagement, assembly frequency, service environment, access and what failure would mean. Then review the parent material and released receiving feature. A machined metal thread repair, a molded boss, an additively manufactured polymer feature and a thin sheet component require different installation and load-transfer strategies even if the nominal thread size matches.
Use the exact insert identity when it is fixed, including size, material, finish and installation guidance. Where engineering review is requested, provide the functional constraints and allowed geometry changes. State whether the requirement is thread acceptance, installed height, orientation, torque behavior, pull-out, rotation or another tested characteristic. Application performance is never inferred from a representative image or insert family; testing is scoped from the specific joint and risk.
Best-fit parts and programs
A good route connects exact hardware, parent feature, installation access and final assembly evidence.
Name the exact insert and approved alternates where the design is frozen. If the route remains open, identify thread, parent material, service conditions, assembly frequency and the characteristics that the selected joint must support.
Provide grade, condition, thickness or boss geometry, hole preparation, edge distance and relevant print or mold direction. Dimensional rules should match the chosen installation method and final material state.
Define heat, press, winding, swaging, molding or other installation constraints along with tool approach, support and protected surfaces. Review whether the process can damage coating, distort the parent feature or trap debris.
Provide the mating fastener, engagement and assembly torque context. Define thread, seating, orientation, retention or cycle testing that is actually required, including sample size and document needs.
Feasibility checks
The same internal thread can hide very different parent features, installation risks and joint behavior.
Insufficient wall, incorrect preparation, poor support or excessive installation energy can damage a boss or hole. Review the released geometry and material condition against the exact method before quoting the finished component.
Heat installation can change local material, surface and dimensions, while printed or filled polymers may respond differently by direction and grade. Define the parent process and validate risk-sensitive joints where required.
Coating, debris, lubricant or installation residue can affect thread and final cleanliness. State masking, cleaning and process sequence, especially for fluid paths, optical assemblies or controlled environments.
A visibly seated insert is not evidence of a required pull-out, torque-out or cycle result. Use a defined method and sampling plan only when that performance is part of acceptance.
Route options
No insert type is universally preferred across metals, molded polymers, additive parts and sheet components.
Heat-set, press-in, helical and locked inserts can be installed after the base part is produced. The route must control receiving geometry, access, sequence, debris and final seating or thread condition.
Insert molding can integrate hardware during molding when location, retention and tooling support are designed for it. Control insert supply, orientation, contamination, movement and sample validation.
A machined or formed thread, captured nut or redesign may be simpler when material, thickness, assembly access and service needs allow it. Compare complete joint risk and downstream assembly, not hardware price alone.
Decision comparison
Typical published practice for installed threaded inserts. Exact hole sizes, boss geometry and performance figures come from the specific insert manufacturer's data, and the project requirement is confirmed on the reviewed quote rather than from this table.
| Parent route | Typical published value | Acceptance focus |
|---|---|---|
| Heat-set inserts, moulded plastic | The usual route: an M3 brass insert commonly has an outside diameter near 4.6 mm and is set into a hole around 4.0 mm | The insert manufacturer's published hole size, not a general rule |
| Boss wall around the insert | At least 1.5 mm of resin, with the boss outside diameter about twice the insert outside diameter | Thin bosses crack from the hoop stress the insert creates |
| Boss depth | At least 0.5 mm deeper than the insert, so displaced material has somewhere to go | A bottomed insert lifts and sits proud |
| Installation temperature | The tip is heated so the resin melts and reflows around the knurl, rather than the insert being pressed cold | A cold-pressed insert splits the boss |
| Ultrasonic inserts | An alternative to heat-set with faster cycles and similar geometry requirements | Which method the supplier uses, since hole sizes differ |
| Press-in inserts | Rely on interference alone; lower pull-out and prone to splitting bosses in stiff or filled resins | Whether the resin tolerates interference at all |
| Moulded-in inserts | Highest pull-out because the resin shrinks onto the knurl under pressure, at the cost of tool complexity and cycle time | Whether volume justifies the moulding route |
| Inserts in 3D printed parts | Heat-set works in FDM, SLS and MJF parts, but layer adhesion limits pull-out and a printed boss cracks more readily | A wall of at least 1.5 mm and a tested pull-out figure |
| Inserts in sheet metal | Self-clinching hardware instead, requiring a published minimum sheet thickness and edge distance and a sheet softer than the hardware | Whether the chosen gauge supports the hardware |
| Pull-out and torque | Both are stated as numeric requirements with a test method; a thread that gauges correctly can still pull out at low load | The acceptance test named, not inferred |
| Sequence with finishing | Inserts are normally installed after coating, or masked, since powder adds 50 to 100 µm per surface and closes the thread | Which threads are masked and which are chased |
| Insert material | Brass is standard; stainless where corrosion or galvanic compatibility matters | The galvanic pair reviewed against the fastener and the environment |
| Larger insert example | An M5 brass insert commonly has an outside diameter near 6.4 mm, wanting a boss near 13 mm outside diameter and at least 1.5 mm of wall | The manufacturer's data for the specific series, not a scaled rule |
| Anodize allowance | Type II anodize adds 5 µm to 25 µm on every surface, closing a fine installed thread | Which installed threads are masked before finishing |
Quote inputs
Submit the parent part, insert and mating joint as one requirement package.
Complete packages move faster: revision-matched CAD, critical dimensions, quantity and material notes are enough to open engineering review across the network.
Get a QuoteProvide exact insert manufacturer and part number or the functional criteria for selection review
State parent material, manufacturing process, feature geometry, condition and permitted changes
Show installation direction, support, access, protected surfaces and downstream process sequence
Provide the mating fastener, engagement, assembly torque and expected service or assembly cycles
Define thread, seating, orientation, retention, testing, sampling and documentation requirements
Set supplied-hardware responsibilities, approved alternates, spares, replacement and final packaging
Questions before routing
These answers prepare the request; the reviewed quote controls project-specific commitments.
Heat-set brass inserts are the default for moulded and machined plastics — the heated tip melts the resin so it reflows around the knurl, which gives good pull-out without the splitting that cold press-in inserts cause. Ultrasonic installation is a close alternative with faster cycles. Moulded-in inserts give the highest pull-out because the resin shrinks onto the knurl under pressure, but they add tool complexity and cycle time. State the load, torque and cycle requirements.
From the insert manufacturer's published data, not from a general rule — hole size varies by insert series. As a starting point, allow at least 1.5 mm of resin wall around the insert with a boss outside diameter about twice the insert's, and make the boss at least 0.5 mm deeper than the insert so displaced material has somewhere to go. An M3 insert with an outside diameter near 4.6 mm therefore wants a boss near 9 mm outside diameter.
Yes, and heat-set is the usual route in FDM, SLS and MJF parts. Two caveats: layer adhesion limits pull-out in FDM parts, where interlayer strength commonly reaches only 30 to 70% of the in-plane value, and a printed boss cracks more readily than a moulded one. Design at least 1.5 mm of wall around the insert, orient the boss so the load does not pull across layers, and state a tested pull-out requirement rather than assuming.
Usually after, or with the thread masked. Powder coating adds 50 to 100 µm per surface, which closes an M3 thread entirely, and anodize at 5 to 25 µm closes a fine one. On sheet metal, self-clinching hardware is normally installed before coating and then masked, because installation afterward damages the film. State the sequence and the masking on the drawing rather than leaving it to the finishing supplier.
No. A gauge confirms the thread form is correct; it says nothing about whether the insert stays in the boss. Pull-out and torque-out are separate properties determined by the boss geometry, the resin, the installation process and the insert design, and they need stating as numeric requirements with a test method and a sample plan. An insert that gauges perfectly can pull free at a fraction of the expected load if the boss wall is thin.
