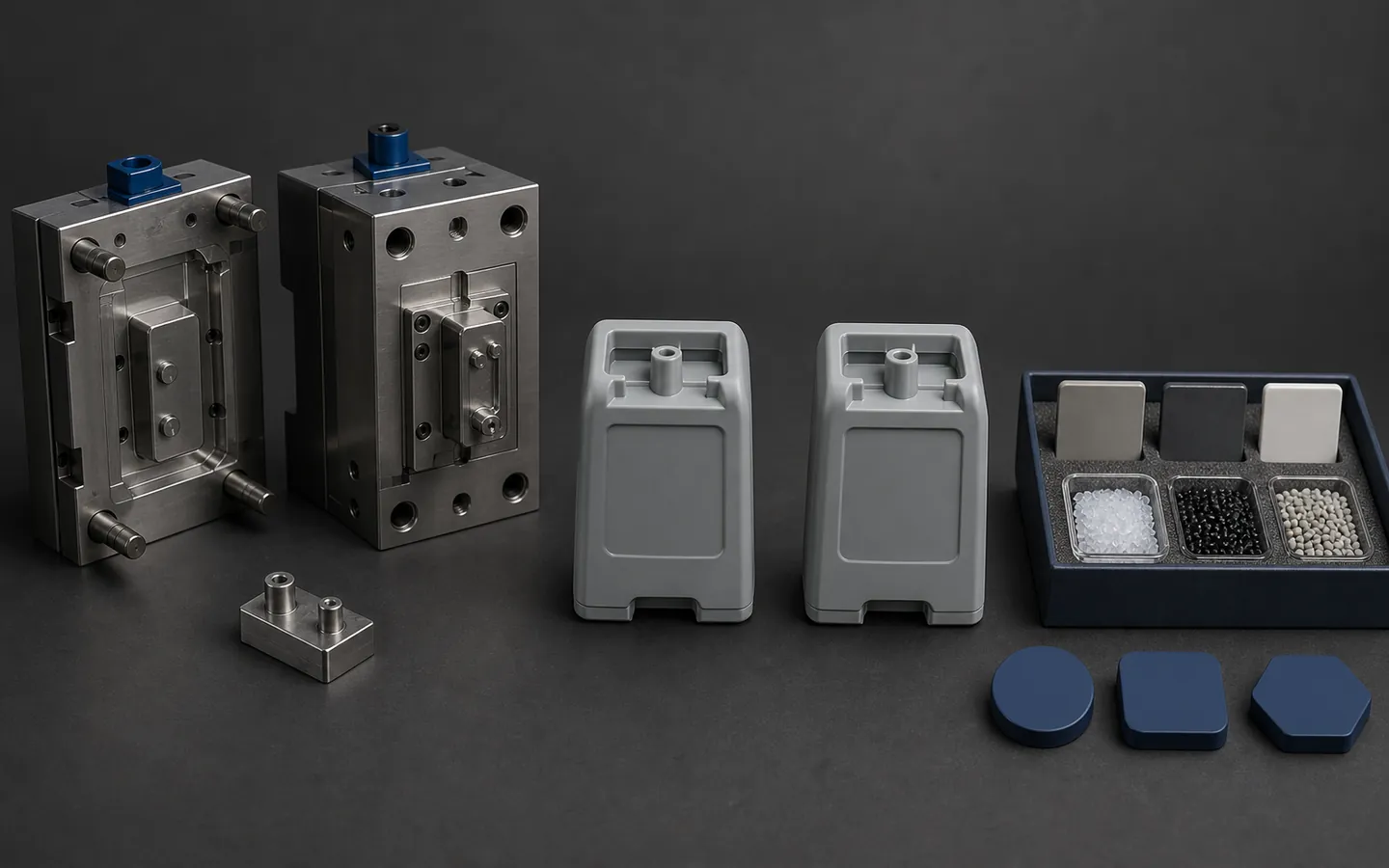

Manufacturing service decision
Prototype tooling is useful when molded-part evidence is worth more than another design assumption. The route should be chosen around the question the samples must answer: geometry, resin behavior, assembly, appearance, process learning or early supply. MakeNexa coordinates a reviewed supplier route for the submitted program; tool construction, samples, timing and commercial terms remain specific to the RFQ.
Route decision
A prototype mold is not simply a cheaper production mold. It can be scoped to shorten the path to representative molded samples, accept planned changes or serve a limited bridge requirement, but those choices influence cavity layout, inserts, cooling, surface condition, automation and what the results can prove. Start by listing the decisions that will be made from the samples and the conditions those samples must represent. A fit-check sample, a resin comparison and a cosmetic approval run do not necessarily need the same tool or release plan.
Submit the current part files, target resin and color, quantity bands, critical dimensions, appearance zones, assembly interfaces and expected design changes. State whether the tool is expected to remain a learning asset, supply early sellable parts or provide a migration path to a production program. MakeNexa reviews feasible network routes and returns clarifications with the quote. It does not promise a universal tool material, tool life, sample date, ownership arrangement or transferability before the exact scope is reviewed.
Best-fit parts and programs
The route is strongest when the team can name what will be learned and how that learning affects the next release.
A molded sample can reveal fill, pack, cooling, shrink, weld-line and ejection behavior that a machined or printed proxy cannot reproduce. Define the resin grade, additives, color and conditioning needed for the question being tested.
Molded bosses, snaps, ribs, sealing lands and inserts can be reviewed in the intended assembly before production tooling. Identify mating parts, functional datums and any destructive or environmental tests planned for the samples.
Replaceable inserts or a deliberately flexible tool concept may support anticipated revisions, but not every feature is equally changeable. Mark likely changes and frozen interfaces so the tool route can be discussed honestly.
A prototype or bridge tool may support an early quantity while demand and design stabilize. State the required release cadence, acceptable manual operations and the event that triggers repair, replacement or production-tool migration.
Feasibility checks
Most program risk comes from assuming that one early tool can satisfy every later purpose without a new review.
A sample request without dimensions, appearance criteria, conditioning, assembly checks or test context creates disagreement after parts arrive. Define which characteristics are informational and which must meet a stated acceptance rule.
Cycle behavior, cavity balance, texture, automation and maintenance from a prototype route may differ from a production-intent tool. Record which observations can inform production and which must be revalidated.
A new resin, filler, colorant or geometry revision can change shrink, flow, wear and surface behavior. Keep one controlled revision and disclose alternate materials before the tool and sampling plan are finalized.
Commercial ownership does not by itself prove that a tool can be transferred and run elsewhere. Storage, maintenance, tool records, included components, export, compatibility and transfer condition must be stated in the quote-specific agreement.
Route options
Compare routes by the decision they support, not by a generic prototype label.
Use a prototype mold when material and molding behavior are central to the decision. Scope cavities, surface, inserts, secondary work, sample quantity and dimensional review around the validation plan.
Machining or additive manufacturing may answer early fit, access or ergonomic questions faster when molded behavior is not yet required. Treat those parts as geometry evidence, not proof of final molded performance.
Move directly to production-intent tooling only when demand, design, resin, release evidence, maintenance and change-control expectations are mature enough to justify the commitment.
Decision comparison
Typical published practice for prototype and bridge injection tooling. Achievable tool life, lead time and part tolerance depend on resin, geometry and tool construction, and the project requirement is confirmed on the reviewed quote rather than from this table.
| Program question | Typical published value | Decision after samples |
|---|---|---|
| Tool material | Aluminium tooling plate for most prototype work; pre-hardened P20 steel at about 30 HRC where life or resin demands it | Whether the tool is a bridge or a throwaway |
| Tool life, aluminium | Commonly 1,000 to 10,000 shots depending on resin and geometry; glass-filled resins wear it far faster | Whether the tool covers the programme |
| Lead time to first samples | Commonly 2 to 4 weeks for a single-cavity aluminium tool | Where tooling sits in the schedule |
| Cavity count | Single cavity is normal; multi-cavity belongs to production tooling | Cycle time against tool cost |
| Side actions | Hand-loaded inserts and manual slides replace automated actions, adding cycle time but cutting tool cost | Whether the geometry needs actions at all |
| Achievable part tolerance | Commonly ±0.1 mm on small features, comparable to production tooling in a stable resin | That prototype tooling is not automatically less accurate |
| Surface finish | Usually machined or lightly polished rather than a specified production grade | Whether cosmetic surfaces are being evaluated |
| Steel-safe design | Removing tool material to add part material is straightforward; the reverse needs welding or an insert | Cut the first tool steel-safe wherever a dimension is uncertain |
| Shrinkage assumption | The tool is cut for one resin — about 0.5% for ABS against 2.5% for acetal | A resin change after sampling means a tool change |
| What transfers to production | Geometry, gate strategy, wall behaviour and knit-line positions transfer; achievable tolerance and cycle time at production quantity often do not | Which conclusions the sampling supports |
| Sample review | First samples are reviewed dimensionally and functionally before tool modification | What is measured, and against what |
| Bridge production | The same tool commonly supplies parts while a production tool is cut, at a higher per-part cost | Whether bridge quantity is part of the plan |
| Hardened-steel comparison | A production H13 tool runs at roughly 48 HRC and beyond a million shots, against aluminium's 1,000 to 10,000 | Whether the programme needs a production tool at all |
| Tool cavity tolerance | Cavity dimensions are commonly cut and inspected to about ±0.05 mm on a prototype tool | Which part dimensions the tool can actually hold |
| Melt temperature by resin | Commonly 250 °C for ABS and up to 320 °C for polycarbonate | Whether the resin and the tool material are compatible |
| Mould temperature | Commonly 40 °C to 80 °C; prototype tools often run cooler and less uniformly than production ones | Why prototype shrinkage does not always match production |
| Typical nominal wall | 2 mm is the usual starting point; a 3 mm wall roughly doubles cooling time | Wall thickness reviewed before the tool is cut |
Quote inputs
Give engineering enough context to separate essential molded evidence from later production features.
Complete packages move faster: revision-matched CAD, critical dimensions, quantity and material notes are enough to open engineering review across the network.
Get a QuoteSubmit the controlled 3D model, matched drawing and revision status
Name the resin grade, color, additives, supplied-material constraint and permitted alternatives
Identify critical dimensions, appearance zones, assembly interfaces and sample tests
State the sample quantity, early-part quantity bands and desired release cadence
Mark likely design changes, frozen interfaces and any insert or overmolding needs
Define tool ownership, storage, maintenance, records and production-transition expectations for review
Questions before routing
These answers prepare the request; the reviewed quote controls project-specific commitments.
When the test depends on the material behaving as it will in production. A moulded ABS part publishes about 40 to 45 MPa tensile isotropically; a printed one gives 30 to 40 MPa in plane and only 30 to 70% of that across layers. Living hinges, fatigue-loaded snap fits, sealing surfaces and cosmetic finish only behave correctly moulded. Against that, tooling commonly takes 2 to 4 weeks where a printed part takes days.
For a bridge, often yes. Aluminium tooling commonly runs 1,000 to 10,000 shots depending on resin and geometry, which covers a launch quantity while a production tool is cut. What it does not give is production cycle time — single cavity, manual actions and slower cooling all add cost per part — or the tool life for a sustained programme. State whether bridge quantity is part of the plan so the tool is built for it.
Aluminium for most prototype work: it cuts faster, costs less, cools quicker and commonly reaches 1,000 to 10,000 shots. Pre-hardened P20 steel at about 30 HRC is worth it when the resin is abrasive — glass-filled grades wear aluminium quickly — when the quantity is toward the upper end, or when the tool is intended as a genuine bridge. State the resin and the quantity and the choice usually follows.
Partly. Geometry, gate strategy, wall behaviour and knit-line positions transfer well, and that learning is much of the value. What does not transfer automatically is dimensional outcome: a production tool has different cooling, different cavity count and often different gating, and each changes shrinkage locally. Plan a requalification of the production tool rather than assuming the prototype's measurements carry over.
Steel-safe, wherever a dimension is uncertain. Removing tool material to add part material is a straightforward machining operation; adding tool material to remove part material means welding or fitting an insert, which is slower, more expensive and sometimes visible on the part. So leave material on the part where a fit is unproven, and let the first samples tell you where to open the tool up.
